group: SP5130RV

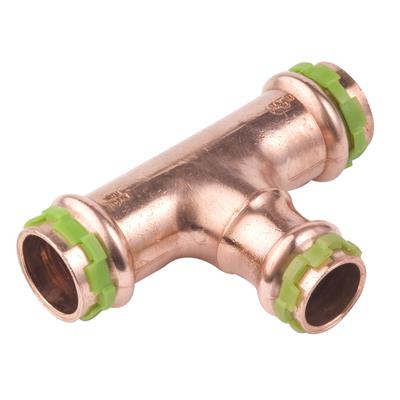

VSH SudoPress SP5130RV är ett reducerat T-rör med 3 pressändar. Genom att använda VSH SudoPress i din rörinstallation kan du installera på ett snabbt, enkelt och rent sätt. VSH SudoPress tillhandahåller ett rörsystem som kan användas i de mest olika situationerna.
dricksvatten
värme
kyla
tryckluft
solenergi
vakuum
bygginstallationer
skeppsbygge
industri
ACS
DVGW Wasser
KIWA
QB (CSTBat)
RISE
TSU
WRAS
| RSK | storlek | vikt | mått | förpackning | gtin |
|---|---|---|---|---|---|
| 1764547 | 12x15x12 | 0,08 kg | 74x48x23 mm | påse (10 st) | 03430651363020 |
| 6670415 | 14x12x14 | 0,09 kg | 77x49x22 mm | påse (5 st) | 03430651363044 |
| 6670417 | 14x16x14 | 0,09 kg | 77x45x24 mm | påse (5 st) | 03430651363051 |
| 1764549 | 15x12x15 | 0,09 kg | 76x49x23 mm | påse (10 st) | 03430651363075 |
| 1764551 | 15x18x15 | 0,11 kg | 80x52x26 mm | påse (10 st) | 03430651363099 |
| 1764552 | 15x22x15 | 0,14 kg | 86x55x31 mm | påse (5 st) | 03430651363105 |
| 6670468 | 16x12x16 | 0,09 kg | 77x51x24 mm | påse (5 st) | 03430651363112 |
| 6670472 | 16x14x16 | 0,11 kg | 82x53x24 mm | påse (5 st) | 03430651363143 |
| 1764553 | 18x12x18 | 0,1 kg | 77x52x26 mm | påse (10 st) | 03430651363174 |
| 6670479 | 18x14x18 | 0,11 kg | 80x53x26 mm | påse (5 st) | 03430651363181 |
| 1764555 | 18x15x18 | 0,11 kg | 80x53x26 mm | påse (10 st) | 03430651363204 |
| 6670502 | 18x16x18 | 0,11 kg | 80x53x26 mm | påse (5 st) | 03430651363211 |
| 1764556 | 18x22x18 | 0,14 kg | 86x56x31 mm | påse (5 st) | 03430651363235 |
| 1764558 | 22x12x22 | 0,13 kg | 77x58x31 mm | påse (5 st) | 03430651363242 |
| 6670523 | 22x14x22 | 0,14 kg | 81x61x31 mm | påse (5 st) | 03430651363259 |
| 1764561 | 22x15x22 | 0,14 kg | 81x61x31 mm | påse (5 st) | 03430651363297 |
| 6670556 | 22x16x22 | 0,14 kg | 81x61x31 mm | påse (5 st) | 03430651363303 |
| 1764564 | 22x18x22 | 0,15 kg | 84x61x31 mm | påse (5 st) | 03430651363341 |
| 1764567 | 22x28x22 | 0,19 kg | 99x62x37 mm | påse (5 st) | 03430651363372 |
| 1764569 | 28x15x28 | 0,18 kg | 90x68x37 mm | påse (5 st) | 03430651363396 |
| 1764571 | 28x18x28 | 0,19 kg | 90x66x37 mm | påse (5 st) | 03430651363419 |
| 1764573 | 28x22x28 | 0,19 kg | 90x68x37 mm | påse (5 st) | 03430651363433 |
| 1764577 | 35x15x35 | 0,24 kg | 97x80x44 mm | påse (1 st) | 03430650363472 |
| 1764578 | 35x18x35 | 0,24 kg | 97x78x44 mm | påse (1 st) | 03430650363489 |
| 1764580 | 35x22x35 | 0,24 kg | 97x75x44 mm | påse (1 st) | 03430650363502 |
| 1764582 | 35x28x35 | 0,25 kg | 97x73x44 mm | påse (1 st) | 03430650363526 |
| 1764583 | 42x22x42 | 0,42 kg | 117x91x54 mm | påse (1 st) | 03430650363533 |
| 1764584 | 42x28x42 | 0,42 kg | 117x87x54 mm | påse (1 st) | 03430650363540 |
| 1764586 | 42x35x42 | 0,44 kg | 117x83x54 mm | påse (1 st) | 03430650363564 |
| 1764587 | 54x22x54 | 0,54 kg | 127x100x66 mm | påse (1 st) | 03430650363571 |
| 1764588 | 54x28x54 | 0,54 kg | 127x98x66 mm | påse (1 st) | 03430650363588 |
| 1764589 | 54x35x54 | 0,54 kg | 127x94x66 mm | påse (1 st) | 03430650363595 |
| 1764591 | 54x42x54 | 0,65 kg | 139x104x66 mm | påse (1 st) | 03430650363618 |
| RSK | storlek | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | d3 | DN3 | l3 | z3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1764591 | 12x15x12 | 12,0 | DN10 | 37 | 19 | 15,0 | DN12 | 38 | 16 | 12,0 | DN10 | 37 | 19 |
| 1764591 | 14x12x14 | 14,0 | DN12 | 39 | 17 | 12,0 | DN10 | 38 | 20 | 14,0 | DN12 | 39 | 17 |
| 1764591 | 14x16x14 | 14,0 | DN12 | 39 | 17 | 16,0 | DN12 | 34 | 12 | 14,0 | DN12 | 39 | 17 |
| 1764591 | 15x12x15 | 15,0 | DN12 | 38 | 16 | 12,0 | DN10 | 37 | 19 | 15,0 | DN12 | 38 | 16 |
| 1764591 | 15x18x15 | 15,0 | DN12 | 40 | 18 | 18,0 | DN15 | 40 | 18 | 15,0 | DN12 | 40 | 18 |
| 1764591 | 15x22x15 | 15,0 | DN12 | 43 | 21 | 22,0 | DN20 | 43 | 20 | 15,0 | DN12 | 43 | 21 |
| 1764591 | 16x12x16 | 16,0 | DN12 | 39 | 17 | 12,0 | DN10 | 39 | 21 | 16,0 | DN12 | 39 | 17 |
| 1764591 | 16x14x16 | 16,0 | DN12 | 41 | 19 | 14,0 | DN12 | 41 | 19 | 16,0 | DN12 | 41 | 19 |
| 1764591 | 18x12x18 | 18,0 | DN15 | 39 | 17 | 12,0 | DN10 | 39 | 21 | 18,0 | DN15 | 39 | 17 |
| 1764591 | 18x14x18 | 18,0 | DN15 | 40 | 18 | 14,0 | DN12 | 40 | 18 | 18,0 | DN15 | 40 | 18 |
| 1764591 | 18x15x18 | 18,0 | DN15 | 40 | 18 | 15,0 | DN12 | 40 | 18 | 18,0 | DN15 | 40 | 18 |
| 1764591 | 18x16x18 | 18,0 | DN15 | 40 | 18 | 16,0 | DN12 | 40 | 18 | 18,0 | DN15 | 40 | 18 |
| 1764591 | 18x22x18 | 18,0 | DN15 | 43 | 21 | 22,0 | DN20 | 43 | 20 | 18,0 | DN15 | 43 | 21 |
| 1764591 | 22x12x22 | 22,0 | DN20 | 39 | 16 | 12,0 | DN10 | 42 | 24 | 22,0 | DN20 | 39 | 16 |
| 1764591 | 22x14x22 | 22,0 | DN20 | 41 | 18 | 14,0 | DN12 | 45 | 23 | 22,0 | DN20 | 41 | 18 |
| 1764591 | 22x15x22 | 22,0 | DN20 | 41 | 18 | 15,0 | DN12 | 45 | 23 | 22,0 | DN20 | 41 | 18 |
| 1764591 | 22x16x22 | 22,0 | DN20 | 41 | 18 | 16,0 | DN12 | 45 | 23 | 22,0 | DN20 | 41 | 18 |
| 1764591 | 22x18x22 | 22,0 | DN20 | 42 | 19 | 18,0 | DN15 | 45 | 23 | 22,0 | DN20 | 42 | 19 |
| 1764591 | 22x28x22 | 22,0 | DN20 | 50 | 27 | 28,0 | DN25 | 47 | 23 | 22,0 | DN20 | 50 | 27 |
| 1764591 | 28x15x28 | 28,0 | DN25 | 45 | 21 | 15,0 | DN12 | 49 | 27 | 28,0 | DN25 | 45 | 21 |
| 1764591 | 28x18x28 | 28,0 | DN25 | 45 | 21 | 18,0 | DN15 | 47 | 25 | 28,0 | DN25 | 45 | 21 |
| 1764591 | 28x22x28 | 28,0 | DN25 | 45 | 21 | 22,0 | DN20 | 49 | 26 | 28,0 | DN25 | 45 | 21 |
| 1764591 | 35x15x35 | 35,0 | DN32 | 49 | 24 | 15,0 | DN12 | 58 | 36 | 35,0 | DN32 | 49 | 24 |
| 1764591 | 35x18x35 | 35,0 | DN32 | 49 | 24 | 18,0 | DN15 | 56 | 34 | 35,0 | DN32 | 49 | 24 |
| 1764591 | 35x22x35 | 35,0 | DN32 | 49 | 24 | 22,0 | DN20 | 53 | 30 | 35,0 | DN32 | 49 | 24 |
| 1764591 | 35x28x35 | 35,0 | DN32 | 49 | 24 | 28,0 | DN25 | 51 | 27 | 35,0 | DN32 | 49 | 24 |
| 1764591 | 42x22x42 | 42,0 | DN40 | 59 | 23 | 22,0 | DN20 | 64 | 41 | 42,0 | DN40 | 59 | 23 |
| 1764591 | 42x28x42 | 42,0 | DN40 | 59 | 23 | 28,0 | DN25 | 60 | 36 | 42,0 | DN40 | 59 | 23 |
| 1764591 | 42x35x42 | 42,0 | DN40 | 59 | 23 | 35,0 | DN32 | 56 | 31 | 42,0 | DN40 | 59 | 23 |
| 1764591 | 54x22x54 | 54,0 | DN50 | 64 | 23 | 22,0 | DN20 | 67 | 44 | 54,0 | DN50 | 64 | 23 |
| 1764591 | 54x28x54 | 54,0 | DN50 | 64 | 23 | 28,0 | DN25 | 65 | 41 | 54,0 | DN50 | 64 | 23 |
| 1764591 | 54x35x54 | 54,0 | DN50 | 64 | 23 | 35,0 | DN32 | 61 | 36 | 54,0 | DN50 | 64 | 23 |
| 1764591 | 54x42x54 | 54,0 | DN50 | 69 | 28 | 42,0 | DN40 | 71 | 35 | 54,0 | DN50 | 69 | 28 |
| färg | koppar |
|---|---|
| material | koppar (CW024A (UNS C12200)) |
| ytbehandlingar | ingen |
| tillverkare | Aalberts integrated piping systems B.V. (VSH) |
| form | T-stycke, reducer (90º) |
| anslutningstyp | press (V) |
| tätning | EPDM |
| produktgrupp | fittings |
|---|---|
| ETIM klass | EC003025 Montering med 3 anslutningar |
| intrastat kod | 74122000 |
| ursprungsland | Frankrike |
| varumärke | VSH |
| serier | SudoPress Koppar |
| produkttyp | SP5130RV |
| UNSPS | 40174607 |
 SP5130RV bild |
jpg | ladda ner |
SudoPress Copper DVGW Water certifikat |
ladda ner | |
SudoPress Copper WRAS certifikat |
ladda ner | |
SudoPress Koper KIWA certifikat |
ladda ner | |
VSH SudoPress Copper 15-54mm RISE ENG certifikat |
ladda ner | |
VSH SudoPress Copper Avis Technique certifikat |
ladda ner | |
VSH SudoPress Copper-ACS certifikat |
ladda ner | |
VSH SudoPress TSU certifikat |
ladda ner | |
 Diagram diagram |
png | ladda ner |
VSH SudoPress Copper 15-54mm RISE SE certifikat |
ladda ner | |
VSH SudoPress instructions monteringsanvisning |
ladda ner |
| etikett | värde |
|---|---|
| ETIM klass | EC003025 Montering med 3 anslutningar |
| Anslutningsmaterial 1 | Koppar |
| Kvalitetanslutningsmateriall 1 | Cu-DHP (CW024A) |
| Gräns snittsanslutning 1 | Obehandlad |
| Anslutning för ytbehandling 1. | Obehandlad |
| Anslutningsmaterial 2 | Koppar |
| Gräns snittsanslutning 2 | Obehandlad |
| Anslutning för ytbehandling 2. | Obehandlad |
| Anslutnings material | Koppar |
| Materailklassanslutning 3 | Cu-DHP (CW024A) |
| Gräns snittsanslutning 3 | Obehandlad |
| Anslutning för ytbehandling 3. | Obehandlad |
| Modell | T-stycke |
| Vinkel | 90° |
| Förminskning | Ja |
| Flera delar | Nej |
| Systembunden | Ja |
| Anslutning 1 | Pressmuff |
| Contour code connection 1 | V |
| Anslutning 2 | Pressmuff |
| Contour code connection 2 | V |
| Anslutning 3 | Pressmuff |
| Contour code connection 3 | V |
| Fläns tryckklass | PN 16 |
| Material tätning | EPDM |
| Main colour fitting | Koppar |
| Dragfast | Ja |
| Max arbetstryck vid 20°C | 16bar |
| Max arbetstryck vid 20°C (imperial) | 232,06psi |
| Max medeltemperatur (kontinuerlig) | -20°C - 110°C |
| Max medeltemperatur (kontinuerlig) (imperial) | -4°F - 230°F |
| Med packningar | Nej |
| Med avtappningsventil | Nej |
| Med avluftare | Nej |
| Med stötkam | Ja |
| Med huv | Nej |
| With connection indicator | Ja |
| FM kvalitetsmärke | Nej |
| LPCB kvalitetsmärke | Nej |
| ULC kvalitetsmärke | Nej |
| UL kvalitetmärke | Nej |
| VdS quality mark | Nej |
| DVGW quality mark for gas | Nej |
| Gastec QA mark | Nej |
| KOMO certified | Nej |
| Gastec QA - AR 214 (H2) | Nej |
