RSK | storlek | vikt | mått | förpackning | gtin |
---|---|---|---|---|---|
6350278 | 32xRp1" | 0,18 kg | 98x78x46 mm | påse (5 st) | 05414764377080 |
6350267 | 32xRp1/2" | 0,18 kg | 98x83x46 mm | påse (5 st) | 05414764376809 |
6350291 | 40xRp1 1/4" | 0,3 kg | 109x96x57 mm | påse (5 st) | 05414764376892 |
6350289 | 40xRp1/2" | 0,3 kg | 109x101x57 mm | påse (5 st) | 05414764376854 |
6350322 | 50xRp1 1/2" | 0,51 kg | 136x111x70 mm | påse (1 st) | 05414764377011 |
6350311 | 50xRp1 1/4" | 0,39 kg | 129x106x57 mm | påse (1 st) | 05414764376977 |
6350300 | 50xRp1/2" | 0,39 kg | 129x111x57 mm | påse (1 st) | 05414764376939 |
6350333 | 63xRp1/2" | 0,91 kg | 171x149x90 mm | påse (1 st) | 05414764377059 |
6350344 | 63xRp2" | 0,91 kg | 171x139x90 mm | påse (1 st) | 05414764189836 |

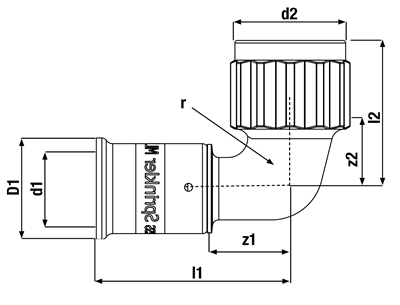

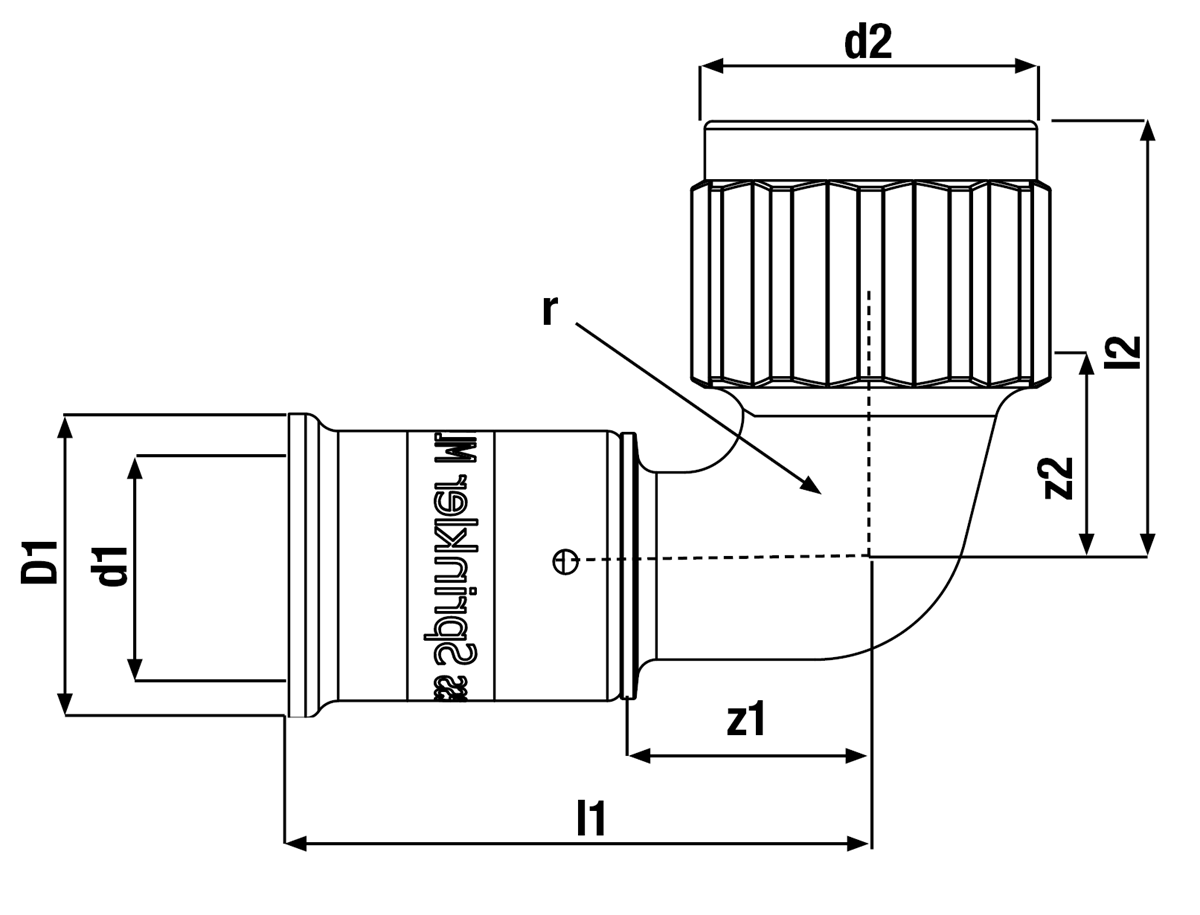

artikelnummer | storlek | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
---|---|---|---|---|---|---|---|---|---|
6350278 | 32xRp1" | 32,0 | DN25 | 74 | 38 | 33,7 | 1" (DN25) | 57 | 39 |
6350267 | 32xRp1/2" | 32,0 | DN25 | 74 | 38 | 21,3 | 1/2" (DN15) | 57 | 39 |
6350291 | 40xRp1 1/4" | 40,0 | DN32 | 80 | 44 | 42,4 | 1 1/4" (DN32) | 71 | 50 |
6350289 | 40xRp1/2" | 40,0 | DN32 | 80 | 44 | 21,3 | 1/2" (DN15) | 71 | 50 |
6350322 | 50xRp1 1/2" | 50,0 | DN40 | 100 | 49 | 48,3 | 1 1/2" (DN40) | 80 | 55 |
6350311 | 50xRp1 1/4" | 50,0 | DN40 | 100 | 49 | 42,4 | 1 1/4" (DN32) | 77 | 56 |
6350300 | 50xRp1/2" | 50,0 | DN40 | 100 | 49 | 21,3 | 1/2" (DN15) | 77 | 56 |
6350333 | 63xRp1/2" | 63,0 | DN50 | 127 | 63 | 21,3 | 1/2" (DN15) | 106 | 76 |
6350344 | 63xRp2" | 63,0 | DN50 | 127 | 63 | 60,3 | 2" (DN50) | 106 | 76 |
färg | svart |
---|---|
material | plast (PVDF) |
ytbehandlingar | ingen |
tillverkare | Aalberts integrated piping systems B.V. (VSH) |
form | Elbow, reducer (90º) |
anslutningstyp | press (BE), Rp - innergänga cylindrisk (BSPT) |
tätning | EPDM |
produktgrupp | fittings |
---|---|
ETIM klass | EC003024 Montering med 2 anslutningar |
intrastat kod | 39174000 |
ursprungsland | Belgien |
varumärke | VSH |
serier | XPress Sprinkler ML |
produkttyp | ML7138 |
etikett | värde |
---|---|
ETIM klass | EC003024 Montering med 2 anslutningar |
Anslutningsmaterial 1 | Polyvinylidene fluoride (PVDF) |
Kvalitetanslutningsmateriall 1 | Polyvinylidene fluoride (PVDF) (expired) |
Gräns snittsanslutning 1 | Obehandlad |
Anslutning för ytbehandling 1. | Obehandlad |
Anslutningsmaterial 2 | Mässing |
Kvalitetanslutningsmateriall 2 | CuZn36Pb2As (CW602N) |
Gräns snittsanslutning 2 | Obehandlad |
Anslutning för ytbehandling 2. | Obehandlad |
Form | Böj |
Böjningsvinkel | 90° |
Excentrisk | Nej |
Systembunden | Ja |
Anslutning 1 | Pressmuff |
Contour code connection 1 | BE |
Anslutning 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
Main colour fitting | Svart |
Material tätning | EPDM |
Med stötkam | Nej |
Dragfast | Ja |
Max medeltemperatur (kontinuerlig) | 10°C - 49°C |
Max medeltemperatur (kontinuerlig) (imperial) | 50°F - 120,2°F |
Med packningar | Nej |
Med huv | Nej |
With connection indicator | Ja |
FM kvalitetsmärke | Nej |
LPCB kvalitetsmärke | Nej |
ULC kvalitetsmärke | Nej |
UL kvalitetmärke | Nej |
VdS quality mark | Ja |
DVGW quality mark for gas | Nej |
DVGW quality mark for water | Nej |
Certified according to NF 545 | Nej |
KIWA certified | Nej |
Gastec QA mark | Nej |
KOMO certified | Nej |
