group: SPG4090GV

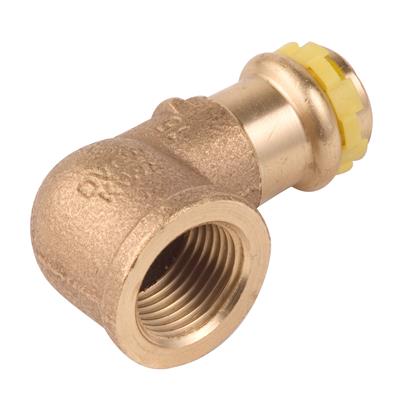

VSH SudoPress SPG4090GV är en 90° vinkelövergång med en pressända och invändig gänga, för gas applikationer. Den gula Visu-Control® ringen och markeringen på kopplingen säkerställer en tydlig identifiering av systemet. VSH SudoPress tillhandahåller ett rörsystem som kan användas i de mest olika situationerna.
naturgas
tryckluft
väte (H2)
bygginstallationer
industri
ARGB-KVBG
ATG-Sert
DVGW Gas
GASTEC
Gastec-H2-ready
TSU
WRAS
RSK | storlek | vikt | mått | förpackning | gtin |
---|---|---|---|---|---|
6673502 | 15xRp1/2" | 0,08 kg | 50x57x23 mm | påse (5 st) | 03430651358651 |
6673513 | 18xRp1/2" | 0,11 kg | 60x40x20 mm | påse (5 st) | 03430651358668 |
6673524 | 18xRp3/4" | 0,13 kg | 70x40x70 mm | påse (5 st) | 03430651358675 |
6673535 | 22xRp1/2" | 0,12 kg | 65x25x40 mm | påse (5 st) | 03430651358699 |
6673546 | 22xRp3/4" | 0,15 kg | 100x100x35 mm | påse (5 st) | 03430651358705 |
6673480 | 22xRp1" | 0,22 kg | 72x45x41 mm | påse (5 st) | 03430651358682 |
6673491 | 28xRp1" | 0,23 kg | 75x50x40 mm | påse (5 st) | 03430651358712 |
artikelnummer | storlek | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | radie | vinkel | slw2 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6673502 | 15xRp1/2" | 15,0 | DN12 | 46 | 24 | 21,3 | 1/2" (DN15) | 23 | 9 | 19 | 90 | |
6673513 | 18xRp1/2" | 18,0 | DN15 | 44 | 22 | 21,3 | 1/2" (DN15) | 24 | 10 | 19 | 90 | 24 |
6673524 | 18xRp3/4" | 18,0 | DN15 | 47 | 25 | 26,9 | 3/4" (DN20) | 26 | 12 | 20 | 90 | 29 |
6673535 | 22xRp1/2" | 22,0 | DN20 | 44 | 21 | 21,3 | 1/2" (DN15) | 26 | 13 | 24 | 90 | 24 |
6673546 | 22xRp3/4" | 22,0 | DN20 | 52 | 29 | 26,9 | 3/4" (DN20) | 27 | 12 | 24 | 90 | |
6673480 | 22xRp1" | 22,0 | DN20 | 51 | 28 | 33,7 | 1" (DN25) | 30 | 13 | 13 | 90 | 41 |
6673491 | 28xRp1" | 28,0 | DN25 | 51 | 27 | 33,7 | 1" (DN25) | 34 | 17 | 14 | 90 |
färg | brons |
---|---|
material | brons (EN CC499K) |
ytbehandlingar | ingen |
tillverkare | Aalberts integrated piping systems B.V. (VSH) |
form | Böj, Elbow, reducer (90º) |
anslutningstyp | press (V), Rp - innergänga cylindrisk (BSPT) |
tätning | HNBR |
produktgrupp | fittings |
---|---|
ETIM klass | EC003024 Montering med 2 anslutningar |
intrastat kod | 74122000 |
ursprungsland | Frankrike |
varumärke | VSH |
serier | SudoPress Koppar Gas |
produkttyp | SPG4090GV |
UNSPS | 40172807 |
scip | 9c667905-838e-436f-9f23-94980e0c8c97 |
SDS-VSH_SudoPress_Copper_gunmetal länk till arket |
ladda ner | |
SPG4090GV bild |
jpg | ladda ner |
SudoPress Copper WRAS certifikat |
ladda ner | |
VSH SudoPress Copper ATG-Sert 001 certifikat |
ladda ner | |
VSH SudoPress Copper ATG-Sert 002 certifikat |
ladda ner | |
VSH SudoPress Copper GASTEC certifikat |
ladda ner | |
VSH SudoPress Copper Gas ARGB-KVBG certifikat |
ladda ner | |
VSH SudoPress Copper Gas Gastec H2 certifikat |
ladda ner | |
VSH SudoPress TSU certifikat |
ladda ner | |
VSH XPress Copper DVGW Gas certifikat |
ladda ner | |
Diagram diagram |
png | ladda ner |
VSH SudoPress instructions monteringsanvisning |
ladda ner |
etikett | värde |
---|---|
ETIM klass | EC003024 Montering med 2 anslutningar |
Anslutningsmaterial 1 | Brons |
Kvalitetanslutningsmateriall 1 | CuSn5Zn5Pb2 |
Gräns snittsanslutning 1 | Obehandlad |
Anslutning för ytbehandling 1. | Obehandlad |
Anslutningsmaterial 2 | Brons |
Kvalitetanslutningsmateriall 2 | CuSn5Zn5Pb2 |
Gräns snittsanslutning 2 | Obehandlad |
Anslutning för ytbehandling 2. | Obehandlad |
Form | Böj |
Modell | one-piece |
Böjningsvinkel | 90° |
Excentrisk | Nej |
Systembunden | Ja |
Anslutning 1 | Pressmuff |
Contour code connection 1 | V |
Anslutning 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
Main colour fitting | Brons |
Material tätning | Hydrogenated acrylonitrile butadiene rubber (HNBR) |
Med stötkam | Ja |
Max medeltemperatur (kontinuerlig) | -20°C - 70°C |
Max medeltemperatur (kontinuerlig) (imperial) | -4°F - 158°F |
Med packningar | Nej |
Med huv | Nej |
With connection indicator | Ja |
Med avtappningsventil | Nej |
Med avluftare | Nej |
FM kvalitetsmärke | Nej |
LPCB kvalitetsmärke | Nej |
ULC kvalitetsmärke | Nej |
UL kvalitetmärke | Nej |
VdS quality mark | Nej |
DVGW quality mark for water | Nej |
Certified according to NF 545 | Nej |
KIWA certified | Nej |
Gastec QA mark | Ja |
KOMO certified | Nej |
Gastec QA - AR 214 (H2) | Ja |
artikelnummer | beskrivning | |
---|---|---|
6674921 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 22 | |
6211898 | Avgradare för elförzinkade och rostfria rör 12-54 | |
6580035 | Novopress pressback PB1 V22 | |
6580090 | Novopress pressback PB2 V22 | |
6674932 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 28 | |
6580046 | Novopress pressback PB1 V28 | |
6580101 | Novopress pressback PB2 V28 | |
6580013 | Novopress pressback PB1 V15 | |
6580079 | Novopress pressback PB2 V15 | |
6674910 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 18 | |
6580024 | Novopress pressback PB1 V18 | |
6580081 | Novopress pressback PB2 V18 | |
6674901 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 15 |
artikelnummer | beskrivning | ||
---|---|---|---|
6674901 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 15 | 1 | |
6674910 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 18 | 1 | |
6674921 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 22 | 1 | |
6674932 | VSH SudoPress Koppar Gas O-Ring HNBR LBP 28 | 1 |
